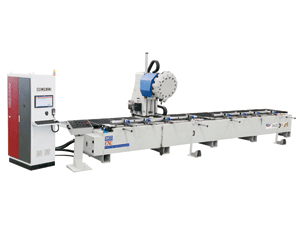

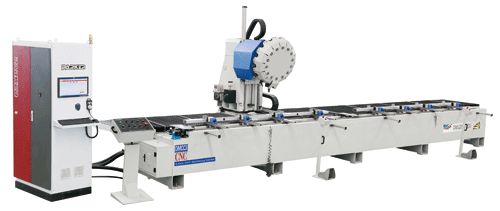

DMCC3 High-Speed Drilling-Milling Processing Center for Curtain Walls
Description
DMCC3 high-speed drilling-milling processing center adopts OMRON brand servo motor control system to ensure its high quality. It is also equipped with professional CAM processing software and intuitive programming system that enables easy visualization of complex processing. Parker 3 axis aluminum CNC machine center is mainly used for curtain wall, door and window, aluminum profile, rail transportation, refrigeration components, bathroom hardware, ship building and ship repair, aluminum bronze accessories, etc. This drilling-milling processing center can also be used for industrial aluminum, nonferrous metal and light section steel structure and processing for drilling, milling and others.
Features of 3 Axis Aluminum CNC Machine Center
1. The body is welded by steel tube with high quality and rigidity.
2. Ball screw of this drilling-milling processing center is from ABBA, keeping high precision.
3. Double location design makes the machine go on working when feeding profiles interactively. This greatly improves the working efficiency.
4. Parker 3 axis aluminum CNC machine center is equipped with lock tool apron, which makes it convenient to change cutters.
5. There is a safe photoelectric protection screen in the front of the drilling-milling processing center, which is beneficial to protect the safety of operators.
6. All the components adopt batch-type feed system and central lubrication. The cutters adopt freezing spray system for cooling, which can improve the life and working depth of 3 axis aluminum CNC machine center.
Technical Specifications
| Model | DMCC3 High-Speed Drilling-Milling Processing Centerfor Curtain Walls |
| Voltage | 380V 50 Hz |
| Total Power | 13 kW |
| Location Error | ± 0.05 mm |
| Resetting Error | ± 0.02 mm |
| Processing Error | ± 0.1 mm |
| Surface Roughness | Ra 12.5μm |
| X Axis of 3 Axis Aluminum CNC Machine Center | 7070 mm |
| X Axis Running Speed | 48 m/min |
| Y Axis | 40 mm |
| Y Axis Running Speed | 48 m/min |
| Z Axis | 572 mm |
| Z Axis Running Speed | 20 m/min |
| Overall Dimension | 10000 mm × 2300 mm × 2800 mm |
Delivery Time
1. For domestic customers, we will deliver high speed drilling-milling processing center within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver 3 axis aluminum CNC machine center within 25 to 30 days after receiving their order.
Parker Machinery Co., Ltd is a professional manufacturer of door and window equipment in China. Our products mainly cover high-speed drilling-milling processing center, insulating glass machine, PVC window and door machine, curtain wall equipment, and so forth. We have been dedicated to producing equipment in this field for ten years. Our 3 axis aluminum CNC machine centers are famous for their advanced design, sophisticated manufacturing, excellent quality and full service. They are highly appraised by customers from over 100 countries and districts.
