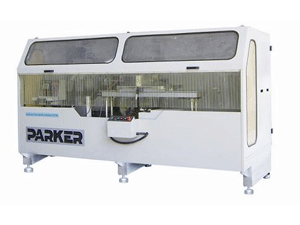

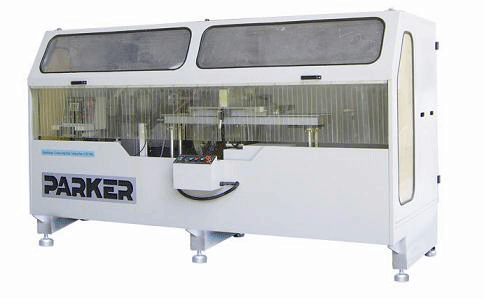

CEC500 Curtain Wall Notching Saw

CEC500 Curtain Wall Notching Saw

Description
CEC500 curtain wall notching saw is developed and designed for notching of aluminum curtain wall profiles, window and door profiles and other aluminum industrial profiles. It is also used to process notching of plastic profiles. This aluminum notching saw adopts Italian display device and original Italian special motor, so it is of big dimension range, precise cutting angle and good smoothness. With high speed and high processing precision, Parker curtain wall notching saw has become the most stable machine in the market and has won high appraisal and recognition from customers. This aluminum notching saw becomes one of our hot selling products.

Features
1. CEC500 curtain wall notching saw is featured with easy installation, robust construction, superior performance and high durability. It is also available in various specifications.
2. Our company has been dedicated to producing aluminum notching saws for over ten years.
3. It is manufactured by adopting high grade components and cutting-edge technology under the guidance of skilled team of professionals.
4. Parker curtain wall notching saw is equipped with magnetic ruler control system, which realizes digital display of the cutting angle and worktable height.
5. With adjustable worktable and locating device, this aluminum notching saw can achieve special end surface angle processing.
6. The blade saw can swing between -45° to +45°.
7. We are also able to customize aluminum curtain wall notching saws as per specific requirements of customers.

Parameters of CEC500 Aluminum Notching Saw

Power Supply  380V 50 Hz
Motor Power 2 × 2.2 kW
Motor Rotary Speed 2800 r/min
Air Pressure of Curtain Wall Notching Saw 0.5 to 0.8 Mpa
Air Consumption 60 L/ min
Saw Blade Swing Range ± 45°
Cutting Depth 150 mm
Saw Blade Dimension Ф500 mm × 4.4 mm × Ф30 mm Z = 120
Overall Dimension 3000 mm×1300 mm×1800 mm
Weight ofAluminum Notching Saw 1592 kg

Parker Machinery Co., Ltd is a leading supplier and exporter of curtain wall notching saws in China. We mainly provide aluminum window and door machine, insulating glass machine, PVC window and door machine, curtain wall equipment, and so on. Complying with European standards, we always purchase main parts internationally. Our aluminum notching saws have passed CE and UL certifications. Parker curtain wall notching saws are exported to many countries and regions, such as North America, East Europe and the Middle East.
