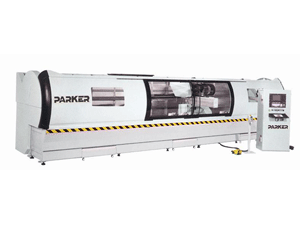

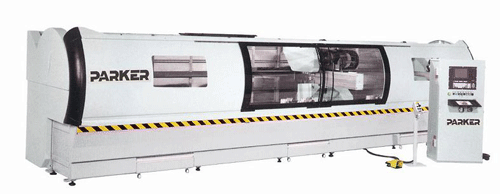

DMCC60 Curtain Walls Drilling-Milling Processing Center

Introduction
DMCC60 curtain walls drilling-milling processing center is designed for processing mounting hole, launder, lock hole and screw on various curtain wall profiles made of aluminum, light alloy or UPVC. This curtain wall processing equipment can be used for window and door, curtain wall, aluminum profile, rail transportation, refrigeration components, bathroom hardware, ship building and ship repair, aluminum bronze accessories, etc. Our drilling-milling processing center is also applied in industrial aluminum, nonferrous metal and light section steel structure and other processing for drilling and milling.

Features
1. Ball screw of this curtain wall processing equipment is from ABBA. The electric main shaft is imported for Italy with high precision.
2. The drilling-milling processing center is installed with automatic lubrication system that can make the machine work with high efficiency.
3. It adopts SCHNEIDER brand servo motor control system, ensuring high quality.
4. This curtain wall processing equipment is equipped with professional CAM processing software and intuitive programming system that enables easy visualization of complex processing.
5. The body of the drilling-milling processing center is welded by steel tube with high quality and high stability.
6. This curtain wall processing equipment is equipped with lock tool apron, which makes it convenient to change cutters.
7. There is a safe photoelectric protection screen in the front of the drilling-milling processing center, which is beneficial to protect the safety of operators.

Main Specifications

X-Way Range	6500 mm
Y-Way Range	550 mm
Z-Way Range	550 mm
X-Way Speed	0 to 60m/min
Y-Way Range	0 to 30m/min
Z-Way Speed	0 to 20m/min
Main Shaft Rev. /Power	0 to 2400 rpm/7.5 kW
Gyrating Rang	+90°to 0°to -90°
Cutter Max Length	165 mm
Saw Blade Diameter	φ150 mm
Air Pressure	0.5 to 0.8 Mpa
Voltage of Curtain Wall Processing Equipment	380V 50 Hz
Total Power	12 kW
Clamping Station/Range	2/400 mm
Work Area (W × H × L)	180 mm × 180 mm × 5800 mm
Overall Dimension	8600 mm × 2010 mm × 2310 mm
Weight of Drilling-Milling Processing Center	4600 kg

With ten years' production experience of curtain wall processing equipment, Parker Machinery Co., Ltd has become a leading manufacturer in this field. The main products also cover aluminum window and door machine, insulating glass machine, PVC window and door machine, curtain wall equipment, aluminum profile cutting machine, and so on. We have a perfect sales network and complete service system in China. We constantly keep innovating, improving the level of this industry and making high quality drilling-milling processing center for customers.
