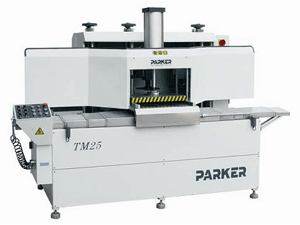

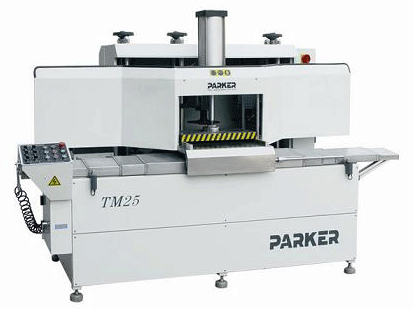

TM25 Aluminum Profile Tenon Milling Machine (Aluminum Curtain Wall Tenon Milling Machine)

Introduction
TM25 aluminum profile tenon milling machine is a new type of curtain wall processing machine. The workbench is large enough to mill and cut 10 to 21 pieces of profiles at one time, which greatly improves the working efficiency. This aluminum profile end milling machine is of wide range processing, easy operation and high efficiency to meet customers' demands. It is suitable for batch production. TM25 aluminum curtain wall tenon milling machine is mainly used for cutting and milling window materials, heat insulating materials, curtain wall materials, and so forth. This aluminum profile end milling machine adopts a particular structure of triangular cylindrical sliding track for high strength and rigidity.

Features
1. Parker aluminum curtain wall tenon milling machine is easy to operate and can adjust size accurately. Its milling precision reaches about 0.1 mm.
2. This aluminum profile end milling machine is equipped with a pneumatic spray mist blade lubrication system.
3. Four milling cutters are installed in axes of the three main electro motors. This can adjust the cutting height to fit for aluminum materials.
4. The tenon milling machine is fitted with six sets of cutting tools that can be combined freely to any size according to customers' requirements. Two sets of them can be adjusted in the range of 180°.
5. This aluminum profile end milling machine moves smoothly and realizes stepless speed adjustment. The blade retracts quickly, saving lots of non-production time.
6. Electro motors star up independently.
7. TM25 aluminum profile tenon milling machines can add one cutting blade as per customer's request.

Technical Parameters

Voltage	380V 50 Hz
Motor Power	6 × 2.2 kW
Motor Speed	2800 r/min
Feeding Motor Power	0.37 kW
Air Pressure	0.5 to 0.8 Mpa
Saw Blade Dimension	350 mm × 3.5 mm × 25.4 mm × Z100 × 2 pieces
Milling Cutter Diameter	Φ250 , 4 pieces
Worktable Feeding Travel	80 mm (horizontal), 280 mm (vertical)
Overall Dimension	2700 mm × 1500 mm × 1900 mm
Weight of TM25 Tenon Milling Machine	1500 kg

Parker Machinery Co., Ltd is a professional manufacturer of door and window equipment in China. Our products also cover aluminum profile end milling machine, corner crimping machine, end milling machine, punching machine, aluminum profile copy router, etc. We have been dedicated to producing tenon milling machines for ten years. Our products are well appreciated for their advanced design, sophisticated manufacturing, excellent quality and full service. They are highly appraised by customers from over 100 countries and districts.
