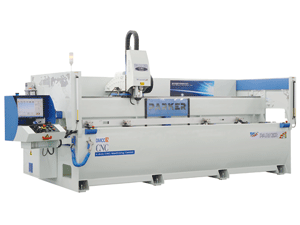

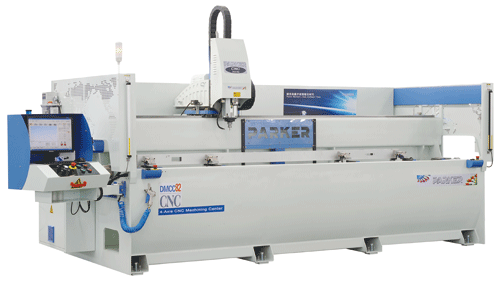

DMCC82 High-Speed Drilling-Milling Processing Center for Curtain Walls
Description
DMCC82 high-speed drilling-milling processing center is equipped with SCHNEIDER brand servo motor control system, ensuring high quality. Equipped with professional CAM processing software and intuitive programming system, this CNC profile machining center enables easy visualization of complex processing. This curtain wall drilling-milling processing center is designed for processing mounting hole, launder, lock hole and screw on various curtain wall profiles made of aluminum, light alloy or UPVC.
Use
This CNC profile machining center is used for window-door, curtain wall, aluminum profile, rail transportation, refrigeration components, bathroom hardware, ship building and ship repair, aluminum bronze accessories, etc. DMCC82 drilling-milling processing center can also be applied for industrial aluminum, nonferrous metal and light section steel structure, and so on.
Parameters of High-Speed CNC Profile Machining Center
| Model | DMCC82 High-Speed Drilling-Milling Processing Center |
| Voltage | 380V 50 Hz |
| Total Power | 11 kW |
| Location Error | ± 0.05 mm |
| Resetting Error | ± 0.02 mm |
| Processing Error | ± 0.1 mm |
| Surface Roughness | Ra 12.5μm |
| X Axis | 3500 mm |
| X Axis Running Speed | 120 m/min |
| Y Axis | 400 mm |
| Y Axis Running Speed | 80 m/min |
| Z Axis | 400 mm |
| Z Axis Running Speed | 60 m/min |
| Max. Processing Speed | 30 m/min |
| Overall Dimension | 5380 mm × 1890 mm × 2240 mm |
| Weight of CNC Profile Machining Center | 3000 kg |
Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for high-speed drilling-milling processing center. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our CNC profile machining center.
3. If our customers need our company to send engineers to test DMCC82 high-speed drilling-milling processing center and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Delivery Time
1. For domestic customers, we will deliver this CNC profile machining center within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver this drilling-milling processing center within 25 to 30 days after receiving their order.
Parker Machinery Co., Ltd mainly supplies aluminum window and door machine, insulating glass machine, PVC window and door machine and curtain wall equipment for sale. With ten years' production experience, Parker CNC profile machining center has been well received for high quality, guaranteed service and favorable price. The main market includes North America, East Europe, the Middle East, and so on. Parker high-speed drilling-milling processing center has won widespread praise and recognition by customers.
