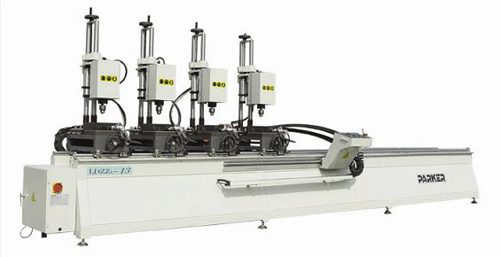

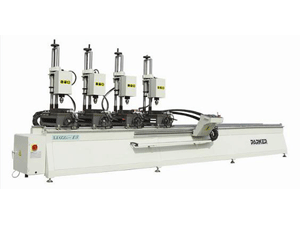

LDDZZ4-13 Multi-Head Drilling Machine
Description
LDDZZ4-13 multi-head drilling machine is primarily used for the punching process in the manufacture of aluminum alloy and curtain wall profiles. This drilling equipment is also used for the processing of industrial profiles and window profiles. Adopting pneumatic-hydraulic damp feeding system, it can drill holes more steadily and accurately. Installed with many punching dies, multi-head drilling machine can process many holes simultaneously. Besides, Jinan Parker drilling equipment is suitable for long profiles and large-scale production.
Features
1. The feeding system adopts the hydraulic damper cylinder to realize stable feeding.
2. LDDZZ4-13 multi-head drilling machine is applied for the profile or the section of no more than 250 × 250 mm. The processing length can reach 5000 mm.
3. This drilling equipment can be installed with multi-head drilling seats, which satisfies the processing performance of many groups of holes.
4. Parker has an independent R&D team that can design and develop multi-head drilling machines based on our own technology. There are a lot of market research engineers engaged in design and improvement of this drilling equipment.
Technical Specifications
| Model | LDDZZ4-13 Multi-Head Drilling Machine |
| Power Supply | 380V 50 Hz |
| Motor Power | 0.75 kW × 4 |
| Rotary Speed | 1400 rpm |
| Air Consumption of Multi-Head Drilling Equipment | 60 L/min |
| Max. Drilling Diameter | 13 mm |
| Max. Distance between Two Drilling Holes | 5000 mm |
| Workbench Dimension | 300 mm × 220 mm |
| Drilling Cutter Feeding Travel | 125 mm |
| Max. Forward-Backward Moving Distance of Head | 60 mm |
| The Quantity of Power-Drill | 4 |
| Hole Dimension Error | ± 0.3 mm |
| Hole Position Error | ≤ 0.3 mm |
| Overall Dimension | 5000 mm × 1260 mm × 2000 mm |
| Weight of Multi-Head Drilling Machine | 2000 kg |
Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for multi-head drilling equipment. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our multi-head drilling machines.
3. If our customers need our company to send engineers to test machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Delivery Time
1. For domestic customers, we will deliver drilling equipment within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver multi-head drilling machines within 25 to 30 days after receiving their order.
Parker Machinery Co., Ltd is a leading manufacturer and supplier of door and window equipment in China. We have been committed to developing drilling equipment for over 10 years. The products also cover insulating glass machine, PVC window and door machine, curtain wall equipment, and so on. Our multi-head drilling machines have received a number of favorable comments from customers both home and abroad.
