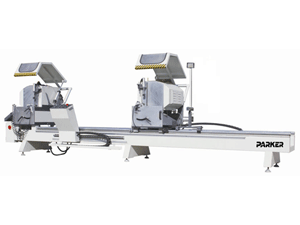

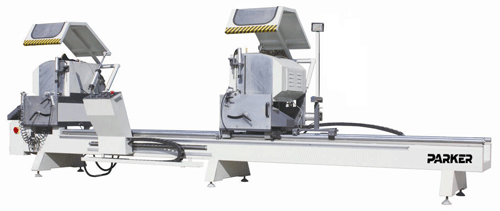

LJZ2S-500×4200 Digital Display Double Head Cutting Saw Machine

Description
LJZ2S-500×4200 digital display double head precision cutting saw is designed to cut aluminum alloy profiles, PVC profiles, aluminum windows, doors, curtain walls, and so forth. This double head cutting machine adopts the imported special hard-metal saw with high precision and efficiency for cutting aluminum alloy doors and windows. The cutting precision has reached the advanced level in the world.

Features
1. The digital display double head precision cutting saw uses imported digital display system and original imported alloy cutting blades specialized for cutting aluminum profiles.
2. With large saws and long structures, this double head cutting machine has a wide cutting range.
3. High-precision main spindle makes the blade rotate smoothly.
4. LJZ2S-500×4200 digital display double head precision cutting saw adopts the linear bearing pair with high cutting precision.
5. Cutting angles of this double head cutting machine are 45 ° and 90 °. Locating and clamping from two directions makes cutting accurate and stable.
6. The high-precision main shaft makes the saw stable and the surface smooth.
7. Parker digital display double head precision cutting saw is equipped with gas-liquid damping cylinder. It realizes smooth feeding and steady moving.
8. If CNC system is put in, the double head cutting machine can make cutting much more precise and the operation more visualized.
9. The automatic opening and closing protecting cover makes the operation safe and easy.

Technical Parameters

Model	LJZ2S-500×4200
Name	Digital Display Double Head Precision Cutting Saw
Repeating Fixed Length Precision	≤0.2 mm
Cutting Angle Error	±5′
Cutting Plainness	≤0.1 mm
Cutting Harshness	Ra12.5 µ m
Power Supply	380V 50Hz （Three phase, four wire）
Motor Power	2.2 kW × 2
Rotary Speed	2800 rpm
Saw Blade Size	Φ500 × 4.4 × Φ30 × Z120
Air Pressure	0.5 to 0.8 Mpa
Air Consumption	200 L/min
Cutting Angle	90° 45°
Cutting Length	Max. 4200 mm Min. 400 mm
Cutting Width	Max. 140 mm
Cutting Height	Max. 300 mm
Feeding Speed	0 to 3 m/ min (variable speed)
Overall Dimension	5500 mm × 1700 mm × 1800 mm
Weight of Double Head Cutting Machine	1800 kg

Established in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With ten years' production experience, Parker has become a leading manufacturer of digital display double head precision cutting saws in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality double head cutting machines for customers. Our products are exported to many countries and regions, such as North America, East Europe and the Middle East. They have won widespread praise and recognition by customers.
