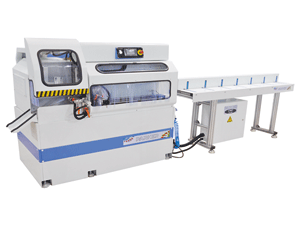

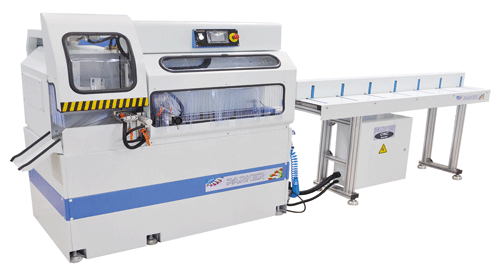

LJMJ-CNC-500B CNC Corner Key Cutting Saw

Introduction
LJMJ-CNC-500B CNC corner key cutting saw is mainly used for corner connector of aluminum profile cutting or for plastic cutting. This corner connector cutting machine is well known for high efficiency, high precision and large scale production. It adopts imported carbide saw blades that give accurate processing and high endurance. In order to assure the cutting accuracy, we use OMRON PLC control system to drive the ball screw and use the main shaft to drive the WEMARO saw blade. Besides, this CNC corner key cutting saw (CNC corner connector cutting machine) is also equipped with automatic profile feeding device. We can realize automatic cutting and counting.

Features
1. LJMJ-CNC-500B CNC corner key cutting saw has features of high automation, reliability and production efficiency.
2. Linear bearing motion pair gives less resistance force and ensures high processing accuracy.
3. CNC corner connector cutting machines adopt automatic counters.
4. When power is off suddenly, clamping device keeps fixing profiles in order to protect the worker and CNC corner key cutting saw.
5. Clamping and feeding process adopt pneumatic control.

Technical Parameters

Model	LJMJ-CNC-500B CNC Connector Key Cutting Saw
Voltage	380V 50 Hz
Power	2.2 kW
Air Pressure	0.5 to 0.8 MPa
Air Consumption	200 L/min
Blade Specification	Φ500 × Φ30 × 4.4 Z = 120
Feeding Speed	0 to 3 m/min
Rotary Speed	2800 rpm
Cutting Length	Max. 600 mm Min. 3 mm
Cutting Width	140 mm
Cutting Height	140 mm
Surface Plainness	± 0.1 mm
Surface Harshness	Ra12.5 µ m
Overall Dimension	1700 × 1700 × 1400 (mm)

Parker Machinery Co., Ltd is a leading supplier and exporter of CNC corner key cutting saws in China. We have been committed to developing corner connector cutting machines for over 10 years. The products also cover insulating glass machine, PVC window and door machine, curtain wall equipment, etc. With a professional technical team of first-class rich experience and well-trained technicians, our CNC corner key cutting saws have received a number of favorable comments from customers both home and abroad.
