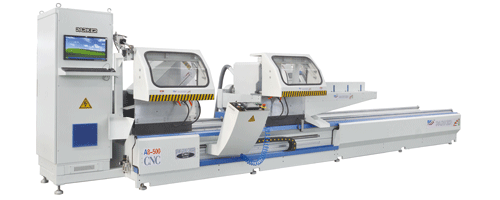

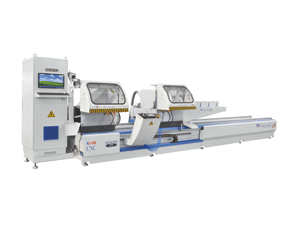

A8-500 3 Axis CNC Aluminum Profile Cutting Saw

Introduction
A8-500 3 axis CNC aluminum profile cutting saw is used for cutting aluminum alloy profiles and wall profiles. As a CNC controlled equipment, it can realize cutting profiles in any or arbitrary angle. Parker is a professional manufacturer and supplier of CNC cutting saws in China. In addition to this aluminum window and door machinery, we also provide aluminum profile corner crimping machine, end milling machine, aluminum profile punching machine, aluminum profile copy router, ACP processing machine, etc. The three axis aluminum profile cutting saw (3 axis CNC cutting saw for aluminum profile) has won widespread praise and recognition by customers.

Features
1. A8-500 aluminum profile cutting saw is the most advanced double-head cutting saw.
2. The PLC, servo motor, servo driver and touch screen use SCHNEIDER brand products imported from France.
3. The control system of this CNC cutting saw adopts the new closed-loop system. This ensures the accuracy of repeat length.
4. Three axis aluminum profile cutting saw uses imported SCHNEIDER electric spare parts.
5. We adopt Germany WEMARO blades with high precision, making the cutting surface smooth.
6. This CNC cutting saw can automatically feed the profiles. We can input the cutting data one time. It can also cut profiles with different sizes automatically and continuously.
7. Touch screen and computer make the aluminum profile cutting saw very easy to operate.
8. The servomotor drives the speed reducer to adjust the cutting angle from 45° to 157.5°. The imported service motor with high moving speed and high precision should drive the sawing head.
9. The imported control system of 3 axis CNC cutting saw can ensure the cutting quality.
10. A8-500 aluminum profile cutting saw also has label printing function.

Technical Parameters

Voltage	380V 50 Hz
Power	6.8 kW
Air Pressure	0.5 to 0.8 MPa
Blade Specification	Φ500 × Φ30 × 4.4 Z = 120 (Standard Size)
Cutter Moving Speed	0 to 2 m/min
Cutting Length of CNC Cutting Saw	Max. 5000mm Min. 480 at 90° Max. 5000mm Min. (Double Height of Profile) at 45°
Cutting Width	120 mm
Cutting Height	230 mm
Cutting Angle	45° to 157.5°
Repeat Locating Length Error	± 0.2 mm
Surface Plainness	± 4´
Overall Dimension	6800 mm × 1500 mm × 2040 mm
