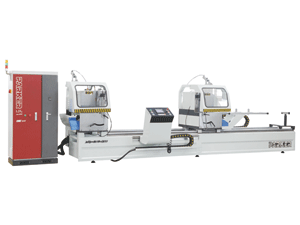

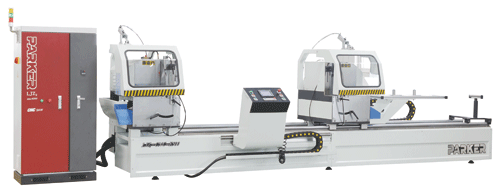

LJZ-CNC-E500×4200 Aluminum Profile Cutting Machine

Introduction
LJZ-CNC-E500×4200 aluminum profile cutting machine is not only used for aluminum profile cutting, but also for corner connector cutting. Its feeding system adopts imported linear guide pair with high accuracy and long service life. This profile cutting saw also uses high helical pitch ball screw, featuring high accurate driving, locating and smooth working. Adopting CNC technique, it can achieve automatic cutting for various profiles. 45 degree and 90 degree cutting are both available. This kind of aluminum profile cutting machine also utilizes imported carbide saw blades to ensure accurate processing and high endurance. Due to high accuracy main spindle, saw blade rotates smoothly. LJZ-CNC-E500×4200 profile cutting saw is well known for its high cutting precision and processing steadiness.

Features
1. The hi-precision main shaft makes the aluminum profile cutting machine work stably and smoothly.
2. With large saws and long structures, this profile cutting saw has a large cutting range.
3. The gas-liquid damping cylinder realizes smooth feeding and steady moving.
4. The moving feeder can efficiently locate the profile and making clamping easy and reliable.
5. If CNC system is put in, aluminum profile cutting machine can make the cutting much more precise and the operation more visualized.
6. The automatic opening and closing protecting cover makes the profile cutting saw easy to operate.
7. Besides, its automatic opening guard shield ensures safety operation.

Parameters Data

Model	LJZ-CNC-E500×4200 Aluminum Profile Cutting Machine
Voltage	380V 50 Hz
Power	4.4 kW
Air Pressure	0.5 to 0.8 MPa
Air Consumption	200 L/min
Blade Specification	Φ500 × Φ30 × 4.4 Z = 120 (Standard Size)
Cutter Moving Speed	0 to 2 m/min
Cutting Length	Max. 4000 mm Min. 200 mm
Cutting Width	Max.135 mm
Cutting Height	Max. 300 mm
Cutting Angle	45° 90°
Repeat Locating Length Error	± 0.2 mm
Angle Error	± 4′
Surface Plainness	± 0.1 mm
Surface Harshness	Ra 12.5μm
Overall Dimension	5500 mm × 1750 mm × 1990 mm

Parker Machinery Co., Ltd is a professional supplier of aluminum profile cutting saws in China. Our products also cover insulating glass machine, PVC window and door machine, curtain wall equipment, and so forth. We have been dedicated to producing aluminum profile cutting machine for ten years. Our products are well appreciated for their advanced design, sophisticated manufacturing, excellent quality and full service. Parker profile cutting saws are highly appraised by customers from over 100 countries and districts.
