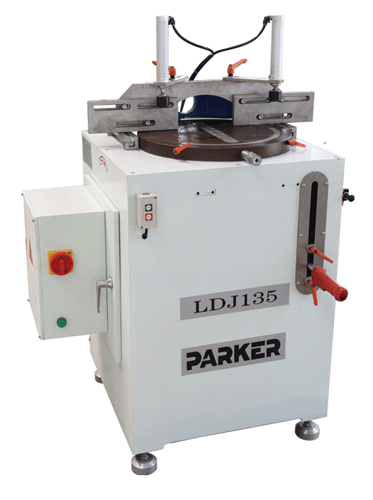

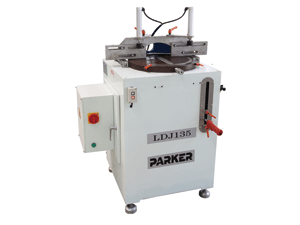

LDJ135 Multi-Function Single Head Cutting Saw Machine
Introduction
LDJ135 multi-function single head saw is not only used for cutting aluminum alloy curtain wall and window profiles, but also applicable for cutting plastic materials. Its hard alloy saw blade diameter can reach 16 inches. This single head cutting saw is also equipped with positioning rack. Digital display device can be installed on the machine depending on customers' requests. It can realize accurate positioning. The saw head of the multi-function single head saw can swing between 90° and 45°. Our products are well received for high quality control, competitive price and acceptable small order. Therefore, Parker single head cutting saw is an ideal choice for cutting different angles of aluminum doors and windows and curtain walls profiles.
Features of LDJ135 Multi-Function Single Head Saw
1. The single head cutting machine is quite suitable for PVC and aluminum profile cutting.
2. This single head cutting saw is easy and convenient to operate and maintain.
3. It adopts high quality imported hard metal saw blade, which ensures high cutting accuracy and high cutting efficiency.
4. The multi-function single head saw is also featured with compact structure and small volume.
5. Parker multi-function single head cutting saw is equipped with a sliding table to support long profiles.
Technical Specifications
| Model | LDJ135 Multi-Function Single Head Saw |
| Repeating Fixed Length Precision | ≤ 0.3 mm |
| Cutting Angle | ± 5′ |
| Cutting Plane | ≤ 0.1 mm |
| Cutting Harshness | Ra 12.5 µ m |
| Power Supply | 380V 50 Hz (Three Phase, Four Wire) |
| Motor Power | 2 × 1.5 kW |
| Rotary Speed | 2800 rpm |
| Trailer Speed | 1400 rpm |
| Air Pressure | 0.5 to 0.8 Mpa |
| Cutting Length | Max. 120 mm Min. 60 mm |
| Cutting Width | Max. 120 mm |
| Cutting Height | Max. 80 mm |
| Feeding Speed | 0 to 3 m/min (Variable Speed) |
| Saw Blade Dimension | Φ300 × 2.8 × Φ30 × Z100 |
| Overall Dimension | 700 mm × 780 mm × 1310 mm |
| Weight of Multi-Function Single Head Cutting Saw | 120 kg |
Parker Machinery Co., Ltd mainly supplies multi-function single head saw, insulating glass machine, PVC window and door machine and curtain wall equipment for sale. With ten years' production experience, Parker single head cutting saw has been well received for high quality, guaranteed service and favorable price. The main market includes North America, East Europe, the Middle East, and so on. Parker can also send our engineers to test the multi-function single head saw and to train the customers' workers.
