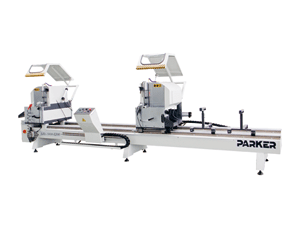

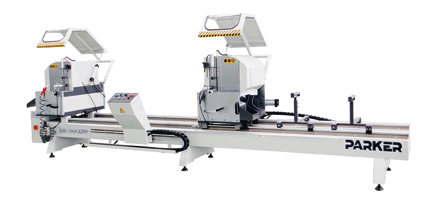

LJZ2-500×4200 Double Head Precision Cutting Saw

Introduction
LJZ2-500×4200 double head precision cutting saw is mainly applicable for cutting aluminum alloy profiles and PVC profiles. It is widely used for fabricating aluminum windows, doors, curtain walls, and so on. The feeding system of this double head cutting machine adopts the imported linear guide pair with high accuracy and stability. With large saws and long structures, the double head precision cutting saw has a large cutting range. Due to airdraulic damping cylinder, it can achieve uniform speed feeding and smooth motion. Besides, adopting imported digital device, LJZ2-500×4200 precise double head cutting machine can accurately display the length of cutting profiles. 45°and 90° angle cutting are both available in Parker.

Advantages
1. Parker double head precision cutting saw uses imported carbide saw blade ensuring accurate processing and high endurance.
2. The moving feeder oft this double head cutting machine can efficiently locate the profile and make the clamping easy and reliable.
3. The hi-precision main shaft makes the saw stable and the surface smooth.
4. Equipped with high precision linear bearing, double head precision cutting saw can keep high repositioning precision.
5. Double head cutting machine is fitted with automatic-opening guard shield, which ensures safe and easy operation

Technical Specifications

Model	LJZ2-500×4200 Double Head Precision Cutting Saw
Repeating Fixed Length Precision	≤ 0.2 mm
Cutting Angle Error	± 5′
Cutting Plainness	≤ 0.1 mm
Cutting Sag	≤ 0.1 mm
Cutting Harshness	Ra12.5 µ m
Power Supply	380V 50 Hz （Three Phase, Four Wire）
Motor Power	2.2 kW × 2
Rotary Speed	2800 rpm
Saw Blade Size	Φ500 × 4.4 × Φ30 × Z120
Air Pressure of Double Head Cutting Machine	0.5 to 0.8 Mpa
Air Consumption	200 L/min
Cutting Angle	90° 45°
Cutting Length	Max. 4200 mm Min. 400 mm
Cutting Width	Max. 140 mm
Cutting Height	Max. 300 mm
Feeding Speed	0 to 3 m/ min (Variable Speed)
Overall Dimension	5500 mm × 1700 mm × 1800 mm
Weight of Double Head Precision Cutting Saw	1800 kg

With ten years' production experience of door and window equipment, Parker Machinery Co., Ltd has become a leading manufacturer in this field. The main products are double head cutting machine, insulating glass machine, PVC window and door machine, curtain wall equipment, and so on. We have a perfect sales network and complete service system in China. We constantly keep innovating, improving the level of this industry and making high quality double head precision cutting saws for customers.
