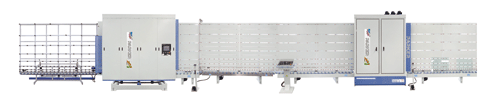

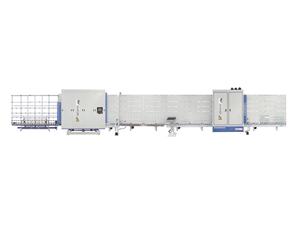

IGV22-S Vertical Automatic Flat Press Insulating Glass Produce Line

Introduction
IGV22-S vertical automatic flat press insulating glass line is one of the insulating glass processing lines that are special designed by our company. This automatic flat press production line possesses many advantages, such as large processing ability, big processing scope, high efficiency, high automation degree, humanization design, etc. IGV22-S insulating glass line is advanced in the glass machine fabrication field both at home and abroad.

Features
1. The automatic flat press production line is equipped with touching screen system with PLC, so it can monitor the working situation and problems.
2. The work frame of this insulating glass line is welded by high strength rectangle tube. It passes several strength calculation and load bearing strength analysis. The work frame will be spray-painted after artificial aging treatment with acid cleaning and phosphorylation.

3. IGV22-S automatic flat press production line features high-strength, high-accuracy and long-working time. The back plate of conveyor section made up of carbon steel plate is treated with laser cutting and CNC bending.
4. Washing and dry section of this insulating glass line adopts stainless steel totally, which prevents effectively cleaning part from rusting. The mode of external wind of fan makes sure the inside cleanness and better effect of glass washing.
5. The control system wires of the automatic flat press production line are controlled by 24V. We import low voltage electrical components and sensor. PLC can control the total machine automatically with high degree of automation. The function of multi-section frequency control and multi-speed optimizing is uniquely designed by our company.
6. Tri-axis CNC servo system is adopted by this insulating glass line. We can process big and small glass, coated glass, low-e glass, triple glass, and so on.
7. The automatic flat press production line adopts imported pneumatic components with long working time and easy maintenance. It realizes filtering water and dropping water automatically and automatic lubrication.
8. Each transport has shields, which is safer when workers checking and operating.
9. Aerospace inserts are used between each section for more convenience for installation and debug.

Main Technical Specifications

Delivery Time
1. For domestic customers, we will deliver the automatic flat press production line within 15 to 20 days after receiving customers’ order.
2. For oversea clients, Parker will deliver vertical insulating glass lines within 25 to 30 days after receiving their order.

With ten years’ production experience of door and window equipment, Jinan Parker Nuoer Machinery Co., Ltd. has become a leading manufacturer in this field. The main products are aluminum window and door machine, automatic flat press production line, PVC window and door machine, curtain wall equipment, aluminum profile cutting machine, etc. We have a perfect sales network and complete service system in China. We constantly keep innovating, improving the level of this industry and making high quality vertical insulating glass lines for customers.
