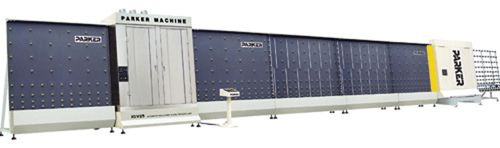

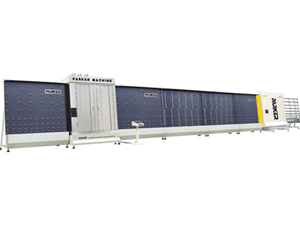

IGV25 Vertical Flat Press Insulating Glass Produce Line
Description
IGV25 vertical insulating glass production line (flat press mode) is quite popular in the production of hollow glass. The automatic insulating glass machine has a unique design of two boxes to enable the two pieces of glass to bind into one at one time. It adopts the imported low-voltage electric apparatus component and sensor. It also adopts touching screen, which is easy to operate and shows dynamic display of the operation and trouble situation. This vertical insulating glass production line can produce large and small scale insulating glass. Equipped with PLC, the insulating glass machine can control the whole operation automatically.
Features
1. The roller adopts the bridge type structure, which can avoid the roller sinking after having worked for a long time.
2. IGV25 vertical insulating glass production line is controlled by punctuated system which is energy-saving. The inspecting and combining speed up when other non operating parts are in intelligent dormancy state.
3. This insulating glass machine can recognize the low-e glass automatically. So it can protect the low-e glass from scratching.
4. Cleaning part is made up of stainless steel. Three pairs of brushes can work separately.
5. This vertical insulating glass production line has the self-diagnosis function, which is easy for checking errors.
6. The flat-pressing insulating glass machine is efficient for the operator to input the order continuously.
Technique Parameters
| Model | IGV25 Vertical Flat Press Insulating Glass Produce Line |
| Voltage | 380V 50 Hz |
| Power | 29.5 kW |
| Air Consumption | 160 L/min |
| Max. Process Dimension | 2500 mm × 3300 mm |
| Min. Process Dimension | 250 mm × 480 mm |
| Max. Thickness | 60 mm |
| Washing Glass Thickness | 3 mm to 12 mm |
| Convey Speed | 12 to 40 m/min |
| Cleaning Speed | 8 to 12 m/min |
| Max. Processing Speed | 40 m/min |
| Overall Dimension | 22800 mm × 2800 mm × 3400 mm |
Delivery Time
1. For domestic customers, we will deliver vertical insulating glass production lines within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver vertical insulating glass machines within 25 to 30 days after receiving their order.
Parker Machinery Co., Ltd is a leading supplier and exporter of door and window equipment in China. We have been committed to developing door and window machines for over 10 years. The products mainly cover vertical insulating glass production line, PVC window and door machine, curtain wall equipment, and so on. With a professional technical team of first-class rich experience and well-trained technicians, our insulating glass machines have received a number of favorable comments from customers both home and abroad.
