PVC Window and Door Glazing Bead Saw
Introduction
PVC window and door glazing bead saw can complete the cutting processing of glazing beads of window and door. With measure rulers, it can measure the window inner frame's size. According to the required size, this glazing bead cutting saw for PVC window and door can process corresponding glazing beads. Besides, there is a tiny adjusting device, with which users can adjust the degree of tightness as needed. This glazing bead saw machine can complete processing procedures of cutting and grooving glazing beads at the same time. Parker mainly provides SYJ03-1800 and SYJ06-1800 glazing bead cutting saws for customers.
Features
1. PVC window and door glazing bead saw adopts two groups of cutters for cutting and milling. It can finish 45°cutting for two pieces of profiles and glazing bead milling at one time.
2. This glazing bead cutting saw is equipped with location device and measuring device to ensure swift measuring and high precision cutting.
3. It is featured with stable feeding, high efficiency and long using life.
4. Glazing beads processed by our glazing bead saws are characterized by good pressure resistance, flame resistance, insulation resistance, high temperature and low temperature resistance, ductility, anti-UV, anti-aging, impact resistance, etc.
5. This finished products from Parker glazing bead cutting saw are with chemical stability, resistance to radiation, ozone resistance, weather resistance and good electrical properties.
Technical Parameters

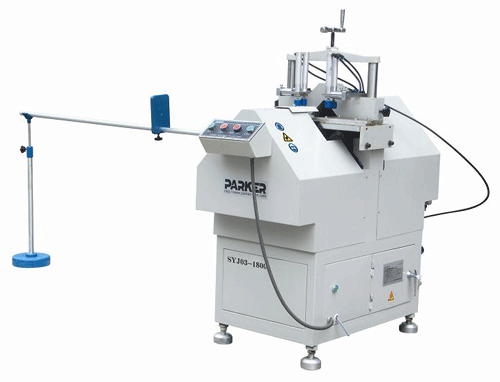

1. SYJ03-1800 PVC Window and Door Glazing Bead Saw
| Voltage | 380V 50 Hz |
| Motor Power | 2.2 kW |
| Air Pressure | 0.4 to 0.6 MPa |
| Air Consumption | 80 L/min |
| Rotary Speed | 2800 r/min |
| Processing Range (Length) | 320 mm to1800 mm |
| Overall Dimension | 2560 mm × 1260 mm × 1350 mm |
| Weight of Glazing Bead Cutting Saw | 200 kg |

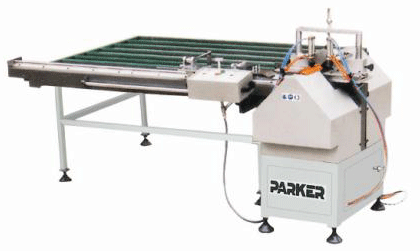

2. SYJ06-1800 PVC Window and Door Glazing Bead Saw
| Input power source | 380V 50 Hz |
| Total power | 2.2 (1.1 × 2) kW |
| Working Air Pressure | 0.4 to 0.6 MPa |
| Air Consumption | 80 L/min |
| Motor rotation velocity | 2800 r/min |
| Processing Range (Length) | 320 mm to1800 mm |
| Dimension | 2560 mm × 1260 mm × 1350 mm |
| Weight of Glazing Bead Cutting Saw | 200 kg |
Delivery Time
1. For domestic customers, we will deliver PVC window and door glazing bead saws within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver products within 25 to 30 days after receiving their order.
Parker Machinery Co., Ltd is a leading supplier and exporter of glazing bead cutting saws in China. We have been committed to developing door and window machines for over 10 years. The products also cover insulating glass machine, aluminum window and door machine, curtain wall equipment, and so on. With a professional technical team of first-class rich experience and well-trained technicians, our glazing bead saws have received a number of favorable comments from customers both home and abroad.
