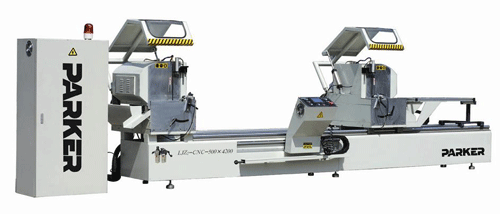

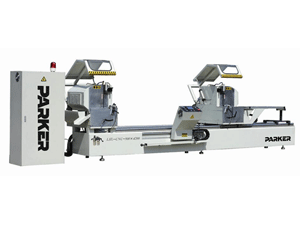

LJZ2-500×4200 Precise Double Mitre Saw
Introduction
LJZ2-500×4200 precise mitre saw is applied for cutting of aluminum alloy and wall profiles. This double mitre saw adopts imported special hard-metal saw to cut aluminum alloy doors and windows with high precision and efficiency. The cutting precision has reached the advanced level in the world. Parker Machinery Co., Ltd is a professional manufacturer and supplier of precise mitre saws in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality precise double mitre saws for customers. They have won widespread praise and recognition by customers.
Features
1. The high precision main shaft makes the precise mitre saw stable and the surface smooth.
2. The gas-liquid damping cylinder realizes smooth feeding and steady moving.
3. With the large saws and long structures, the double mitre saw has a large cutting range.
4. The automatically opening and closing protecting cover makes operation safe and easy.
5. The moving heads of our precise mitre saws adopt imported linear bearing kinematic pair with high precision.
6. The moving feeder of this double mitre saw can efficiently locate the profile and make clamping easy and reliable.
Technical Parameters
| Model | LJZ2-500×4200 Precise Mitre Saw |
| Repeating Fixed Length Precision | ≤ 0.2 mm |
| Cutting Angle Error | ± 5′ |
| Cutting Plainness | ≤ 0.1 mm |
| Cutting Sag | ≤ 0.1 mm |
| Cutting Harshness | Ra12.5 µ m |
| Power Supply | 380V 50 Hz （Three Phase, Four Wire） |
| Motor Power | 2.2 kW × 2 |
| Rotary Speed | 2800 rpm |
| Saw Blade Size | Φ500 × 4.4 × Φ30 × Z120 |
| Air Pressure | 0.5 to 0.8 Mpa |
| Air Consumption | 200 L/min |
| Cutting Angle | 90° 45° |
| Cutting Length | Max. 4200 mm Min. 400 mm |
| Cutting Width | Max. 140 mm |
| Cutting Height | Max. 300 mm |
| Feeding Speed | 0 to 3 m/ min (Variable Speed) |
| Overall Dimension | 5500 mm × 1700 mm × 1800 mm |
| Weight of Precise Double Mitre Saw | 1800 kg |
Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for precise mitre saws. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our precise double mitre saws.
3. If our customers need our company to send engineers to test machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Delivery Time of Precise Mitre Saw
1. For domestic customers, we will deliver double mitre saws within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver machines within 25 to 30 days after receiving their order.
With ten years' production experience of door and window equipment, Parker Machinery Co., Ltd has become a leading manufacturer in this field. The main products are precise mitre saw, insulating glass machine, curtain wall equipment, aluminum profile cutting machine, and so on. We have a perfect sales network and complete service system in China. We constantly keep innovating, improving the level of this industry and making high quality double mitre saws for customers.
