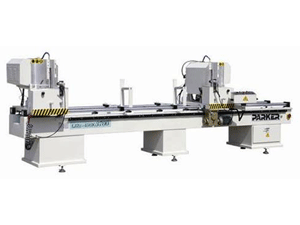

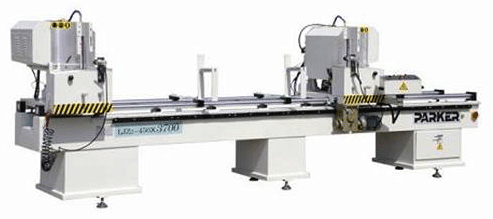

LJZ2 450×3700 PVC Profiles Double Head Cutting Machine
Description
LJZ2 450×3700 PVC profiles double head cutting machine is mainly used for cutting aluminum and PVC profiles, with the saw head adjusting to the angle of 45°to 90°. This PVC profile cutter has a wide cutting range and is well suited for mass, continuous and various productions. It features pneumatic drive, linear and steady feeding, and high production efficiency. Parker double head cutting machines are also of sturdy structure and stable capability.
Advantages
1. This PVC profile cutter possesses the features of easy operation, reliable performance, convenient maintenance, and so on.
2. The linear guiding pair ensures steady processing accuracy.
3. Due to the hydraulic damping cylinder, our double head cutting machines enjoy the advantages of uniform speed feeding and smooth motion.
4. Parker PVC profile cutter adopts imported carbide saw blades with accurate processing and high efficiency.
5. Saw blade rotates smoothly due to high accuracy main spindle.
6. The double head cutting machine has an alloy saw plate with high precision and long service life.
7. Right cutting head moving is driven by motor.
8. The improved safety cover of this PVC profile cutter is more reliable and safe for operation.
9. The movable saw head is dragged by the motor with easy operation.
10. Digital measurement display is optional.
Technical Specifications
| Model | LJZ2 450×3700 PVC Profiles Double Head Cutting Machine |
| Input Power Source | 380V 50 Hz |
| Total Power | 3.55 kW |
| Working Air Pressure | 0.4 to 0.6 Mpa |
| Air Consumption | 200 L/min |
| Saw Plate Rotate Speed | 3087 r/min |
| Max. Cutting Section | 120 mm × 200 mm |
| Double Cutting Length | 580 mm to 3700 mm |
| Overall Dimension | 4500 mm × 1100 mm × 1400 mm |
| Weight of Double Head PVC Profile Cutter | 1000 kg |
Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for double head cutting machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our PVC profile cutters.
3. If our customers need our company to send engineers to test machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Parker Machinery Co., Ltd is a professional manufacturer of double head cutting machines in China. Our products also mainly cover aluminum window and door machine, insulating glass machine, PVC profile cutter, curtain wall equipment, and so forth. We have been dedicated to producing door and window equipment for ten years. Our products are well appreciated for their advanced design, sophisticated manufacturing, excellent quality and full service. Parker double head cutting machines are highly appraised by customers from over 100 countries and districts.
