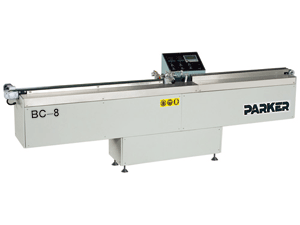

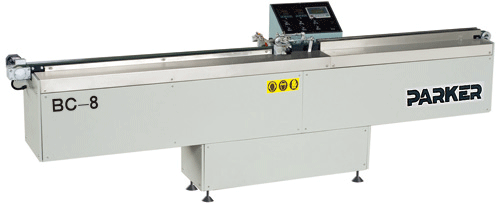

BC-8 Butyl Coating Machine
Description
BC-8 butyl coating machine is mainly utilized for aluminum spacer butyl coating. It is the important equipment for insulating glass production line. Display system can show operators the butyl quantity automatically. This butyl extruder machine also uses imported gas-liquid pressurization system to ensure stable pressure. The butyl coating machine can be turned on and off automatically according to setup.
Features
1. This butyl extruder machine is more stable and energy-saving with the most advanced domestic technology.
2. BC-8 butyl coating machine is easy to operate with the human-machine interface display screen.
3. Alarming system is set when the sealant has been exhausted so the operator can fill in the sealant in time.
4. This butyl extruder machine can adjust temperature and pressure automatically.
5. Working table of the butyl coating machine can be changed in a certain scope.
6. Butyl spreading is well-proportioned and the linearity is good.
Technical Parameters
| Model | BC-8 Butyl Extruder Machine |
| Voltage | 380V 50 Hz |
| Power | 1.6 kW |
| Air Pressure | 0.5 to 0.8 Mpa |
| Air Consumption | 50 L/min |
| Transmit Speed | 0 to 35 m/min |
| Temperature | 100°C to 140°C |
| Squeeze Pressure | 8 to 15 Mpa |
| Adjustable Range | 3 mm to 30 mm |
| Overall Dimension | 3000 mm × 680 mm × 1080 mm |
| Weight of Butyl Coating Machine | 850 kg |
Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for butyl extruder machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our butyl coating machines.
3. If our customers need our company to send engineers to test butyl extruder machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Established in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With ten years' production experience, Parker has become a leading manufacturer of butyl coating machines. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality butyl extruder machines for customers. Our products have won widespread praise and recognition by customers.
