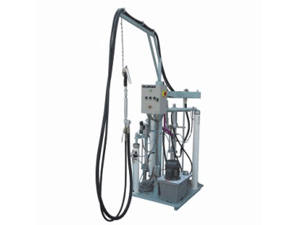

TCC200 Two Component Coating Machine
Description
TCC200 two component coating machine is mainly used for coating two component sealants in processing insulating glass. It is also extensively applied for mixing silicone, polysulfide and polyurethane sealants at an accurate and well-proportioned rate. This bi-component extruder machine extrudes the sealant with high speed, which saves sealant and increases the efficiency compared to manual application. Parker two component coating machines are well received for high coating efficiency and convenient maintenance. It has become one of the most important equipment suitable for making insulating glass and curtain glass.
Features of TCC200 Bi-Component Extruder Machine
1. This two component coating machine is motivated by pneumatic power and electric control system. It is economical and practical.
2. The valves of the basic component pump, harden pump and proportioning pump are made of special alloy with no leakage.
3. Controlled by no-touch-point electric control system, this bi-component extruder machine is smooth to run, flexible and reliable to change direction, continuous and stable to produce sealant.
4. Our two component coating machines are equipped with multichannel filtering device to eliminate the impurities going into the pump body.
5. Main and auxiliary motors all adopt domestic leading technology contributing to low failure rate.
6. This bi-component extruder machine is installed with shortage alarm system for base material and curing agent
7. TCC200 two component coating machine is fitted with safety valve, which guarantees the operating safety.
8. Special check valve in proportioning pump makes the sealant come out more fluently. It is suitable for all kinds of sealants and avoids incomplete mixing.
9. This bi-component extruder machine can be matched with rotary coating table.
10. Pumps and other main parts are imported with high quality.
Technical Specifications
| Model | TCC200 Two Component Coating Machine |
| Voltage | 380V 50 Hz |
| Power | 1.1 kW |
| Air Pressure | 0.5 to 0.8 Mpa |
| Air Consumption | 0.6 L/min |
| A Pump Pressure Plate Size | Φ565 (50 gallon barrel) |
| B Pump Pressure Plate Size | Φ285 (5 gallon barrel) |
| Mixed Rate | 100 : 6.5 to 100 : 14.5 |
| Overall Dimension | 1200 mm × 1100 mm × 2500 mm |
| Weight | 650 kg |
| Glue Type | SILICON, SULFIDE, URETHANE |
Delivery Time
1. For domestic customers, we will deliver bi-component extruder machines within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver two component coating machines within 25 to 30 days after receiving their order.
Parker Machinery Co., Ltd has ten years' production experience of door and window equipment and becomes a leading manufacturer in this field. We offer aluminum window and door machine, bi-component extruder machine, PVC window and door machine, curtain wall equipment, aluminum profile cutting machine, etc. We constantly keep innovating, improving the level of this industry and making high quality two component coating machines for customers.
