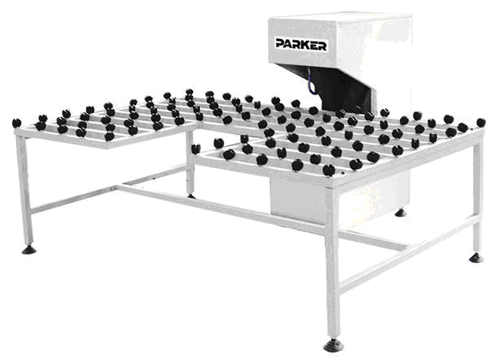

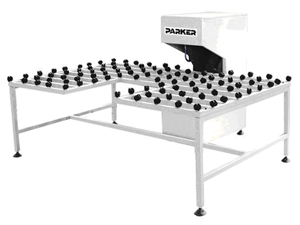

EF95 Glass Edge Finishing Machine (Edge Grinding Machine)

EF95 Glass Edge Finishing Machine (Edge Grinding Machine)

Description
EF95 glass edge finish machine is the special equipment mainly used to smooth the sharp edge after glass cutting. It is an ideal glass edge grinding machine with a wide using range and high efficiency. The abrasive belt running at high speed can simultaneously grind and remove the sharp edges around the glass sheets to prevent machine damage or injury to workers due to sharp edges. The glass edge finish machine can also lengthen the service life of the equipment. Parker Machinery Co., Ltd has been committed to developing glass edge grinding machines for over 10 years. Our glass edge polishing machines are simple in operation and high in working efficiency.

Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for glass edge finish machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our glass edge grinding machines or glass edge grinding machines.
3. If our customers need our company to send engineers to test glass edge finish machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.

Specifications of EF95 Glass Edge Grinding Machine

Voltage 380V 50 Hz
Power 1.5 kW
Air Pressure 0.5 to 0.8 Mpa
Glass Dimension Max.2000 mm × 2000 mm
Edge Polishing Speed 150 to 300mm/s
Overall Dimension of Glass Edge Finish Machine Main Part: 800 mm × 500 mm ×1200 mm
Supporting Arms: 2140 mm × 1400 mm × 700 mm

Delivery Time
1. For domestic customers, we will deliver glass edge grinding machines within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver glass edge finish machines within 25 to 30 days after receiving their order.

Parker Machinery Co., Ltd is a leading supplier and exporter of door and window equipment in China. The products mainly cover aluminum window and door machine, glass edge grinding machine, PVC window and door machine, curtain wall equipment, and so on. With a professional technical team of first-class rich experience and well-trained technicians, our glass edge finish machines have received a number of favorable comments from customers both home and abroad.
