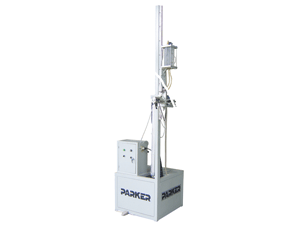

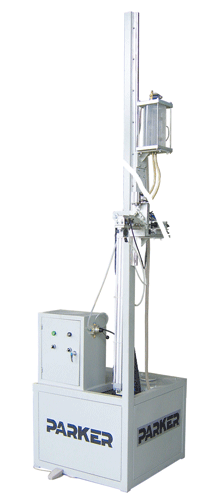

EMSF Automatic Molecular Sieve Filling Machine
Description
EMSF automatic molecular sieve filling machine is available for both the bended spacer frame and ordinary corner connected frame. Adopting PLC controller, this desiccant filling machine for insulating glass can automatically punch holes and fill the molecular sieve. According to the size of aluminum frame, the filling height can be adjusted. Parker molecular sieve filling machine is equipped with dust filter and the desiccants are hermetically filled. The desiccant will not absorb the water in the air, so the service life of the insulating glass is largely increased. This desiccant filling machine can also seal the hole manually if needed.
Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for automatic molecular sieve filling machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our desiccant filling machines.
3. If our customers need our company to send engineers to test molecular sieve filling machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Parameters of EMSF Desiccant Filling Machine
| Model | EMSF Automatic Molecular Sieve Filling Machine |
| Voltage | 220 V 50 Hz |
| Power | 1 kW |
| Desiccant Diameter | 0.5 mm to 0.8 mm |
| Spacer Width | 5.5 mm to 24 mm |
| Max. Filling Frame Size | 2000 mm × 2000 mm |
| Air Pressure | 0.6 Mpa |
| Overall Dimension | 1680 mm × 1080 mm × 3050 mm |
Delivery Time
1. For domestic customers, we will deliver desiccant filling machines for insulating glass within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver automatic molecular sieve filling machines within 25 to 30 days after receiving their order.
Parker Machinery Co., Ltd is a leading supplier and exporter of door and window equipment in China. We have been committed to developing desiccant filling machines for over 10 years. The products mainly cover aluminum window and door machine, molecular sieve filling machine, PVC window door machine, curtain wall equipment, and so on. With a professional technical team of first-class rich experience and well-trained technicians, our desiccant filling machines have received a number of favorable comments from customers both home and abroad.
