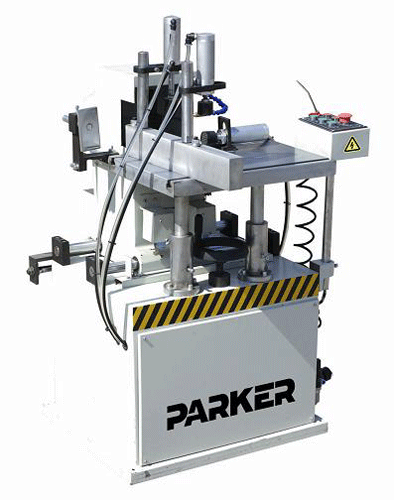

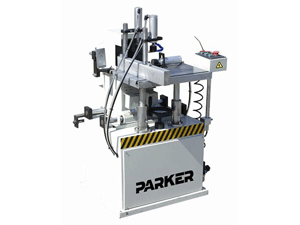

LDX-200 PVC Profile End Milling Machine
Introduction
LDX-200 PVC profile end milling machine is the special equipment mainly used for PVC and aluminum profile end milling. This PVC milling machine can also be used for special-shaped aluminum and PVC transom end milling. It is an important machine for PVC mullion screw connection. It consists of electromotor box, worktable, machine body, pneumatic system and electric system. This end milling machine is suitable for PVC or aluminum window and door batch processing. By changing cutters, this PVC milling machine can mill profiles with different sections.
Features
1. It owns merits of pneumatic clamp, manual feeding, easy operation, smooth feed and reliable performance.
2. LDX-200 end milling machine is equipped with a hand wheel to adjust height of working table.
3. The electromotor of this PVC milling machine directly drives the milling cutter to rotate.
4. Air gun with long pipe is for cleaning conveniently.
5. Milling cutters are specially designed for different profiles.
6. The end milling machine for PVC profiles is installed with an oil water separator for drying and lubricating.
7. This PVC milling machine can be operated and maintained simply.
Technical Specifications
| Model | LDX-200 PVC Profile End Milling Machine |
| Input Power Source | 380V 50 Hz |
| Total Power | 1.5 kW |
| Working Pressure | 0.4 to 0.6 Mpa |
| Air Consumption | 80 L/min |
| Motor Rotating Speed | 2800 r/min |
| Milling Cutter | Ф115-160 |
| Max. Working Size | 200 mm × 70 mm × 45 mm |
| Dimension | 4200 mm × 860 mm × 1500 mm |
| Weight | 700 kg |
Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for end milling machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our PVC milling machines.
3. If our customers need our company to send engineers to test end milling machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Founded in 2003, Parker Machinery Co., Ltd has been engaged in producing PVC milling machines for ten years. We also supply aluminum window and door machine, insulating glass machine, PVC profile end milling machine and curtain wall equipment for sale. We offer our clients with qualified products, guaranteed service and favorable price. With advanced technological equipment, tremendous technical strength and reliable product quality, our PVC milling machines have been exported to South Korea, Canada, USA, Australia, France, Iran, South Africa, etc.
