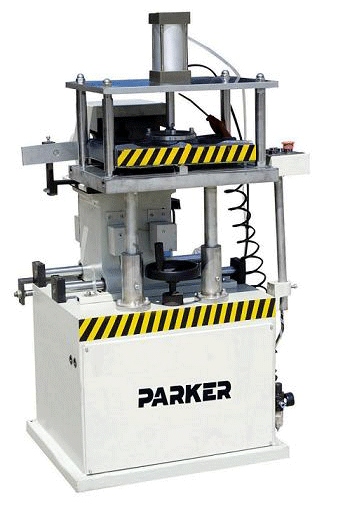

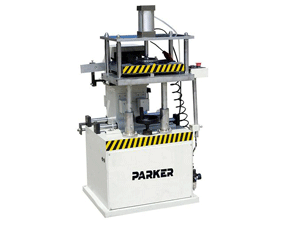

LDXB-200 Alloy Material End Milling Machine

Introduction
LDXB-200 alloy material end milling machine is mainly applied for milling aluminum profile end, step surface, end slot, and so on. The adjustable processing angle ranges from 30° to 90°. This end face milling machine is equipped with super precision main shaft that ensures accurate and steady processing. Tool main shaft is connected by shaft coupling, thus the rotating accuracy of main shaft can not affect the tool's working accuracy. This end milling machine is also equipped with an adjustable worktable, which is convenient for tool setting. The feeding of this end face milling machine adopts linear bearing kinematic pair ensuring steady and reliable processing.

Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for end milling machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our end face milling machines.
3. If our customers need our company to send engineers to test end milling machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.

Specifications of Alloy Material End Face Milling Machine

Model	LDXB-200 Alloy Material Dejection End Milling Machine
Harshness	Ra12.5 µ m
Power Supply	380V 50 Hz (Three Phase, Four Wire)
Motor Power	1.5 kW
Rotary Speed	2800 rpm
Air Pressure	0.5 to 0.8 Mpa
Max. Diameter of Milling Cutter	200 mm
Max. Milling Range	200 mm × 70 mm × 45 mm
Table Up-Down Travel	0 to 80 mm
Overall Dimension	850 mm × 740mm × 1280mm
Weight	150 kg

Delivery Time
1. For domestic customers, we will deliver end milling machines within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver our end face milling machines within 25 to 30 days after receiving their order.

Parker Machinery Co., Ltd is a professional manufacturer and supplier of door and window equipment in China. Our products mainly cover aluminum window and door machine, insulating glass machine, end milling machine, curtain wall equipment, and so forth. We have been dedicated to producing end face milling machines for ten years. Our products are well appreciated for their advanced design, sophisticated manufacturing, excellent quality and full service. They are highly appraised by customers from over 100 countries and districts.
