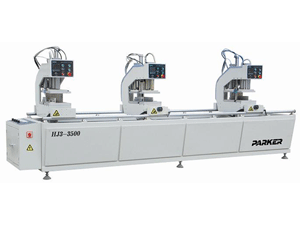

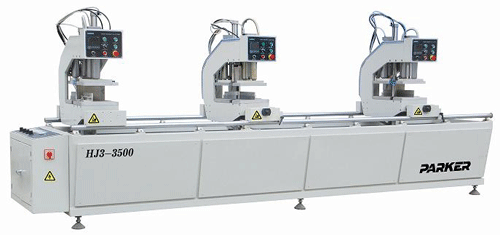

HJ3-3500 Three Head Welding Machine
Description
HJ3-3500 three head welding machine is composed of three machine heads, machine frame, electric control tank and material supporting frame. This PVC welding machine can be used for PVC window and door welding processing. The three machine heads can be used individually or jointly. It enables welding for such shapes as ┗ ┠ ┮┏┓┳┳ ┯┯┿ ┿┿. Parker three head welding machine is one of the most ideal equipment for welding processing for PVC windows and doors. One head of this PVC welding machine can be used for welding processing with variable angles. It is also suitable for special shaped window welding like arch windows.
Features
1. The left head of three head welding machine is equipped with a horizontal moving mechanism. It can move 20 mm along the track with the control of the program.
2. This PVC welding machine can also be installed with fixing mechanism, pressing mechanism, heating mechanism and head box on the machine head.
3. Our three head welding machines adopt PC control, pneumatic driving and locating. The movable stand adopts non-oil lubricating bearings and linear ball bearings that make it be of high precision and convenient maintenance.
4. Parker PVC welding machine is featured with reliable function and easy operation.
5. With a professional technical team of first-class rich experience and well-trained technicians, our three head welding machines have received a number of favorable comments.
Technical Parameters
| Type | HJ3-3500 Three HeadPVC Welding Machine |
| Voltage | 220 V 50 Hz |
| Total Power | 3.5 kW |
| Air Pressure | 0.5 to 0.8 MPa |
| Air Consumption | 60 L/min |
| Profile Height | 20 mm to 100 mm |
| Max. Profile Width | 120 mm |
| Welding Size | 400 mm to 3500 mm |
| Overall Dimension | 4500 mm × 1000 mm × 1700 mm |
| Weight of Three Head Welding Machine | 1200 kg |
Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for PVC welding machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our three head welding machines.
3. If our customers need our company to send engineers to test machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Parker Machinery Co., Ltd is a leading supplier and exporter of PVC welding machines in China. We mainly provide three head welding machine, aluminum window and door machine, insulating glass machine, curtain wall equipment, and so on. Complying with European standards, we always purchase main parts internationally. Our products have passed CE and UL certifications. Parker three head welding machines are exported to many countries and regions, such as North America, East Europe and the Middle East.
