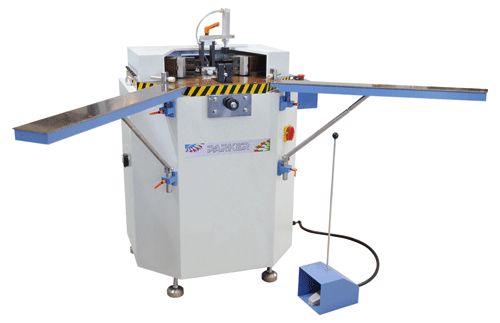

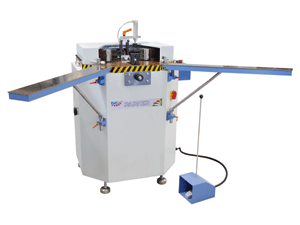

LJJ-120 Hydraulic Corner Crimping Machine
Description
LJJ-120 hydraulic corner crimping machine adopts new mechanical link structure to make corner assembling synchronously. Left and right punching heads feed synchronously to avoid deformation to make window corner connection more solid. Synchronous feeding structure makes the adjustment simple and easy. The blades can be adjusted up and down relatively by the threads. This single head crimping machine or hydraulic corner crimping machine can be equipped with single blade or multipoint blades, making more reliable corner forming, more efficient work, more precise manufacturing and more excellent quality.
Applications
LJJ-120 hydraulic single head crimping machine is mainly used for connection of 90°angle structure of aluminum doors and windows. Hydraulic corner crimping machine is also suitable for corner combining of framework and hinges of various aluminum windows, especially heat insulation aluminum windows and high grade aluminum alloy doors and windows.
Features
1. This single head crimping machine realizes stable corner combining due to hydraulic power drive.
2. Hydraulic corner crimping machine features less processing error, easier operation and better processing quality.
3. Screw adjusts combining tool's distance, making the tool setting convenient.
4. Single head crimping machine can be equipped with multi-position combining tool available to process thermal bridge aluminum.
Technical Parameters
| Model | LJJ-120 Hydraulic Corner Crimping Machine |
| Joint Seam Error | ≤ 0.15 mm |
| Power Supply | 380V 50 Hz (Three Phase, Four Wire) |
| Input Power | 1.5 kW |
| Hydraulic System Pressure | 15 Mpa |
| Air Pressure | 0.5 to 0.8 Mpa |
| Air Consumption | 2 L/min |
| Oil Tank Capacity | 20 L |
| Width of Profile | 120 mm |
| Overall Dimension | 1000 mm × 1200 mm × 1200 mm |
| Weight of Single Head Crimping Machine | 360 kg |
Established in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With ten years' production experience, Parker has become a leading manufacturer of hydraulic corner crimping machines. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality single head crimping machines for customers. Our products are exported to many countries and regions, such as North America, East Europe and the Middle East. Parker hydraulic corner crimping machines have won widespread praise and recognition by customers.
