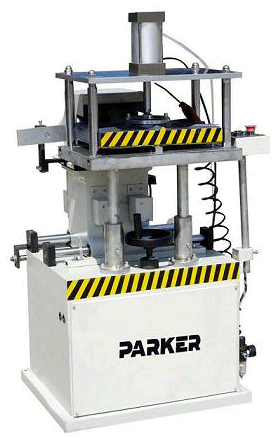

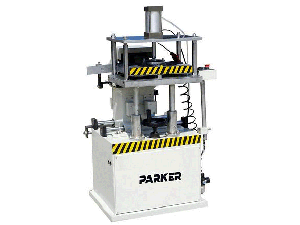

LDXB-200 Aluminum Profile End Face Milling Machine
Introduction
LDXB-200 aluminum profile end face milling machine is mainly applied for milling aluminum profile end, end slot and step surface. It is also suitable for processing various profiles. The end slot and step surface processed can be vertical with the profile or have a certain angle. With the angle ruler on the worktable, this aluminum profile end milling machine is convenient for angle setting. For the aluminum profile end face milling machine, the maximum diameter of milling cutter is 200 mm.
Features
1. Super precision main shaft ensures accurate and steady processing.
2. Adjustable processing angle of this aluminum profile end milling machine is from 30° to 90°.
3. Due to adjustable worktable, the end face milling machine is convenient to set tools.
4. Tool feeding adopts linear bearing kinematic pair, which ensures steady process.
5. Tool main shaft is connected by shaft coupling, thus the motor main shaft rotating accuracy can not affect the working accuracy of the aluminum profile end milling machine.
Technical Parameters
| Model | LDXB-200 Aluminum Profile End Face Milling Machine |
| Harshness | Ra12.5 µ m |
| Power Supply | 380V 50 Hz (Three Phase, Four Wire） |
| Motor Power | 1.5 kW |
| Rotary Speed | 2800 rpm |
| Air Pressure | 0.5 to 0.8 Mpa |
| Max. Diameter of Milling Cutter | 200 mm |
| Max. Milling Range | 90 mm × 45 mm × 200 mm |
| Table Up-Down Travel | 0 to 80 mm |
| Overall Dimension | 700 mm × 900 mm × 1350 mm |
| Weight of Aluminum Profile End Milling Machine | 220 kg |
Service for Aluminum Door Window Machinery
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for aluminum profile end face milling machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our aluminum profile end milling machines.
3. If our customers need our company to send engineers to test machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Parker Machinery Co., Ltd mainly supplies aluminum profile end face milling machine, insulating glass machine, PVC window and door machine and curtain wall equipment fro sale. With ten years' production experience, Parker door and window equipment has been well received for high quality, guaranteed service and favorable price. The main market includes North America, East Europe, the Middle East, and so on. Parker aluminum profile end milling machines are highly appraised by our customers.
