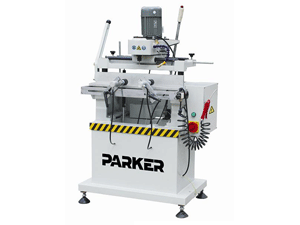

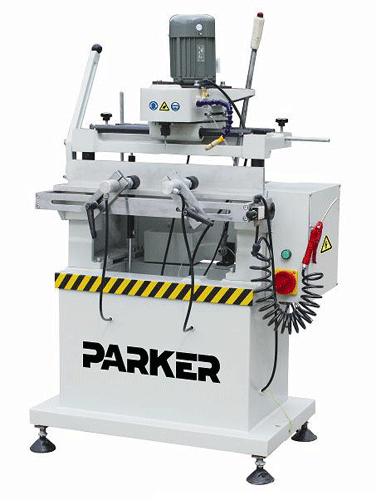

LFX-300×100 Single Axis Copy Router
Description
LFX-300×100 single axis copy routing machine is mainly used for processing different kinds of holes, grooves, draining holes and slots on the aluminum or PVC windows and doors. It adopts the high speed milling cutter that is accelerated by the belt and pneumatic clamping way. Therefore, this single axis copy router possesses the advantages of high production efficiency, flexible and performance, high stability, and so on. This copy routing machine can realize vertical process. It is the necessary processing equipment for producing aluminum or PVC windows and doors. Jinan Parker is a specialized manufacturer and supplier of aluminum door and window equipment in China. Our single axis copy router machines have received a number of favorable comments from customers both home and abroad.
Features
1. LFX-300×100 copy routing machine adopts imported special aluminum alloy cutters to improve the precision and efficiency.
2. This single axis copy router features compact structure, small volume, nice design, high efficiency, and so on.
3. High processing precision and smoothness have made Parker become a famous brand in the world.
4. Our copy routing machines are characterized by wide adaptation, large useful scope, easy and safe operation, and convenient maintenance.
Specifications of LFX-300×100 Single Axis Copy Router
| Milling Sag | ± 0.1 mm |
| Milling Harshness | Ra12.5 µ m |
| Power Supply | 380V 50 Hz |
| Motor Power | 0.75 kW |
| Rotary Speed | 11200 rpm |
| Air Pressure | 0.5 to 0.8 Mpa |
| Diameter of Milling Cutter | Φ5 mm |
| Copying Dimension | 290 mm × 90 mm (Vertical) |
| Overall Dimension | 800 mm × 560 mm × 1420 mm |
| Weight of Single Axis Copy Routing Machine | 220 kg |
Parker Machinery Co., Ltd mainly supplies aluminum window and door machine, insulating glass machine, PVC window and door machine and curtain wall equipment for sale. With ten years' production experience, Parker single axis copy routers have been well received for high quality, guaranteed service and favorable price. The main market includes North America, East Europe, the Middle East, and so on. Parker can also send our engineers to test the copy routing machines and to train the customers' workers.
