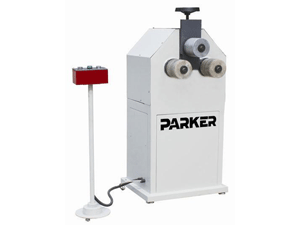

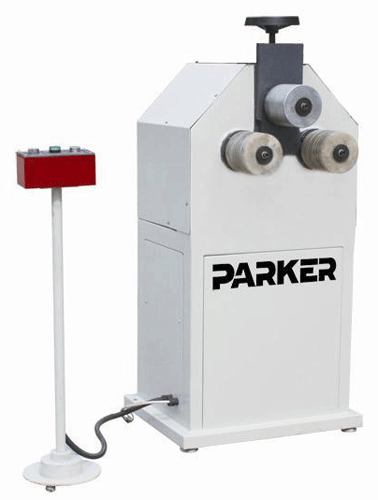

LWJ-100 Aluminum Profile Bending Machine

LWJ-100 Aluminum Profile Bending Machine

Introduction
Aluminum profile bending machine is also named aluminum section bending machine, three roll bender, angle roll bending machine and tube bending or pipe bending machine. It can bend T, Z and L types of profiles. LWJ-100 aluminum profile bender can also use special moulds to bend many other profiles. The mould is made of nylon, so it can protect the profiles from attrition. Aluminum profile bending machine is typically used for profile bending in the manufacture of aluminum windows and doors. The bending range is wide, specially used for decoration craft. Besides, this aluminum profile bender is also used for bending aluminum alloy channel material, angle material, flat material, iron and stainless steel, etc.

Applications
LWJ-100 aluminum profile bending machine is extensively applicable in the following industries for a wide range of curving or bending operations, such as automobile, agriculture, bus body building, furniture, ornamental, structural building, window and door frame, skylight, etc.

Advantages of Aluminum Profile Bender
1. Operation is convenient and the production rate is high.
2. Our aluminum profile bending machines can make bending molds according to the particular condition of aluminum materials. The mold can be changed conveniently.
3. With ten years' production experience, Parker has become a specialized manufacturer of aluminum profile benders.
4. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality aluminum profile bending machines for customers.
5. Our products are well appreciated for their advanced design, sophisticated manufacturing, excellent quality and full service.
6. With a professional technical team of first-class rich experience and well-trained technicians, our aluminum profile benders have received a number of favorable comments from customers both home and abroad.

Technical Parameters

Model LWJ-100 Aluminum Profile Bending Machine
Power Supply 380V 50 Hz (Three Phase, Four Wire)
Motor Power  0.55 kW
Max Bent Section    100 mm × 25 mm
Min Diameter of Bent Arc 450 mm (Max. diameter of bent arc is 800 mm)
Diameter of Trolley Wheel 120 mm
Speed of Trolley Wheel  45 rpm
Overall Dimension    600 mm × 600 mm × 1200 mm
Weight of Aluminum Profile Bender  200 kg

Delivery Time
1. For domestic customers, we will deliver aluminum profile bending machines within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver aluminum profile benders within 25 to 30 days after receiving their order.

Founded in 2003, Parker Machinery Co., Ltd has been engaged in producing door and window equipment for ten years. The main products include aluminum profile bending machine, insulating glass machine, PVC window and door machine, curtain wall equipment, and so on. We offer our clients with qualified products, guaranteed service and favorable price. Our aluminum profile benders have been exported to South Korea, Canada, USA, Australia, France, Iran, South Africa, etc.
