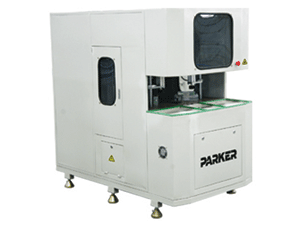

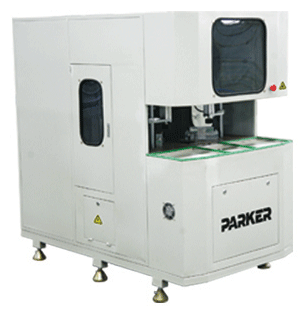

HSC-F7 CNC Corner Cleaning Machine

HSC-F7 CNC Corner Cleaning Machine

Introduction
HSC-F7 CNC corner cleaning machine adopts CNC system to achieve automatic cleaning of PVC profile welding slag. Parker automatic corner cleaning machines can clean multiple shaped welding slag, and clean the up or bottom surface, inside corner and groove at the same time. It adopts imported advanced LCD touched screen that can show us the working situation and help operators to test problems. Our CNC corner cleaning machines can store hundreds of programs and are quite suitable for various profiles processing. Parker automatic corner cleaning machines have characteristics of high reliability, high processing quality, high efficiency, high precision and easy operation.

Features
1. HSC-F7 CNC corner cleaning machine uses the most advanced LCD touch screen with our company special software.
2. Main parts are imported originally, which can guarantee reliable operation.
3. Our automatic corner cleaning machines have the problem protection system and the alarm device.
4. This CNC corner cleaning machine is equipped with human-computer interface that can show the working status and is convenient for operation.
5. The feeding adopts the ball guide rail with high precision. It can reduce the feeding error and make the profile corner more beautiful.

Parameters of HSC-F7 Automatic Corner Cleaning Machines

Model HSC-F7 CNC Corner Cleaning Machine
Voltage 220 V 50 Hz
Total Power 1.5 kW
Air Pressure 0.4 to 0.7 MPa
Air Consumption 11 L/min
Profile Range (W × H) 20 mm / 120 mm × 20 mm / 300 mm
Overall Dimension 1650 mm × 1000 mm × 1500 mm
Weight of CNC Corner Cleaning Machine 800 kg

Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for automatic corner cleaning machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our CNC corner cleaning machines.
3. If our customers need our company to send engineers to test machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.

Parker Machinery Co., Ltd mainly supplies automatic corner cleaning machine, insulating glass machine, PVC window and door machine, and curtain wall equipment for sale. With ten years' production experience, Parker CNC corner cleaning machines have been well received for high quality, guaranteed service and favorable price. The main market includes North America, East Europe, the Middle East, and so on.
